Heating Floor Welded Mesh Panels

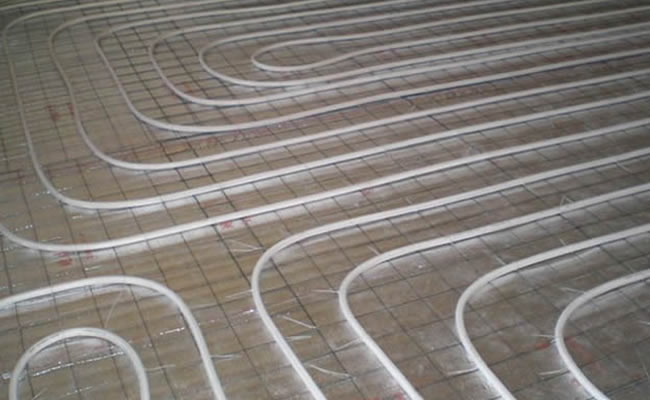

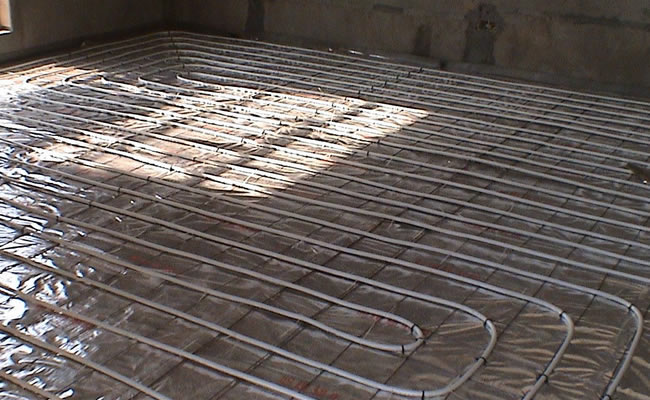

We can supply welded wire mesh fabrics for floor heating system. This kind of welded wire sheets are mainly used for installation & fixing of heating pipes or cables; strengthening heat isolation sheet materials; and/ or increasing the load-bearing of the surface floor.
| Floor Warming Mesh Panels | |||
| Specification Spmesh | Wire Dia (MM) | Aperture (CM) | Net WT (KG) |
| 1M×2M | 2.00 | 10×10 | 1.06 |
| 1M×2M | 2.00 | 15×15 | 0.67 |
| 1M×2M | 2.00 | 20×20 | 0.56 |
| 1M×2M | 2.50 | 10×10 | 1.65 |
| 1M×2M | 2.50 | 15×15 | 1.04 |
| 1M×2M | 2.50 | 20×20 | 0.88 |
| 1M×2M | 3.00 | 10×10 | 2.38 |
| 1M×2M | 3.00 | 15×15 | 1.5 |
| 1M×2M | 3.00 | 20×20 | 1.27 |
Note:Special specifications can be customized. | |||
