Stainless Steel Wire Mesh

Stainless steel woven wire mesh refers to Square Opening Series Stainless Steel Wire Mesh and Stainless Steel Wire Cloth (from 1mesh to 500mesh) and Dutch Woven Series Stainless Steel Wire Cloth (from 12x64mesh to 400x2800mesh).

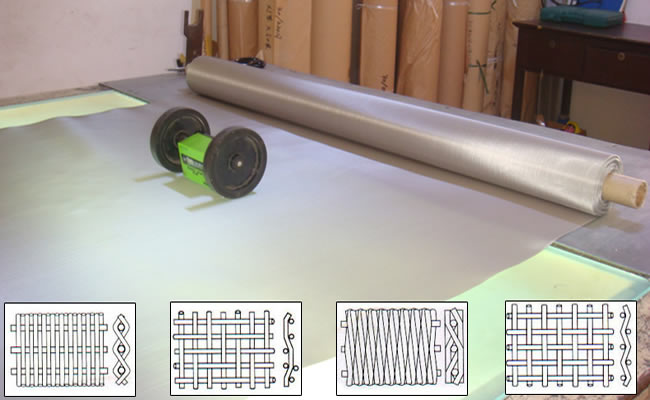

1. Major weaving patterns applied include Plain Weave, Twill Weave, Dutch Plain Weave or Dutch Twill Weave.

2.Variety of Stainless Steel Wire Mesh and Wire Cloth:

Stainless Steel Wire Mesh and Wire Cloth, Plain Weave
Stainless Steel Wire Mesh and Wire Cloth, Twill Weave
Stainless Steel Wire Mesh and Wire Cloth, Dutch Plain Weave
Stainless Steel Wire Mesh and Wire Cloth, Dutch Twill Weave
Stainless Steel Wire Mesh and Wire Cloth, special weaving types

3.Stainless Steel Wire Mesh and Wire Cloth Applications:

Stainless steel wire mesh is extensively used as filtering, sifting or grading materials in mining, chemical industry, food industry and pharmaceutical industry, due to its excellent property of wear-resistance, heat-resistance, acid-resistance and corrosion resistance.

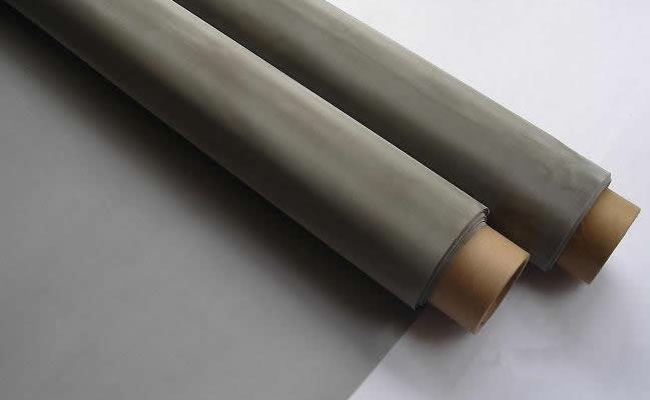

Stainless Steel Wire Mesh and stainless steel wire cloth, can be supplied in rolls or cut into stainless steel wire mesh screen discs.

4. Stainless Steel Wire Mesh Weaving Material:

Type 304
Often referred to as "18-8" (18% chromium, 8% nickel) T-304 is the basic stainless alloy most commonly utilized for wire cloth weaving. It withstands outdoor exposure without rusting and resists oxidation at an elevated temperature up to 1400 Degrees Fahrenheit.

Type 304 L
Type 304 L is very similar to T-304, the difference being the reduced carbon content for better weaving and secondary welding characteristics.

Type 316
Stabilized by the addition of 2% molybdenum, T-316 is an "18-8" alloy.
Type 316 has better resistance to pitting corrosion than the other chromium-nickel stainless steels where brines, sulphur-bearing water or halogen salts, such as chlorides are present. A valuable property of T-316 is high creep strength at elevated temperatures. Other mechanical properties and fabricating characteristics are similar to T-304.
Wire cloth woven of T-316 has extensive use in chemical processing when better corrosion resistance is required than the regular chromium-nickel types.
Type 316 L
Type 316 L is very similar to T-316, the difference being the reduced carbon content for better wire cloth weaving and secondary welding characteristics.


Mesh/Inch

Wire Diameter

Aperture

Open Area

Weight(LB) /100 Square Foot

Inch

MM

Inch

MM

1x1

0.080

2.03

0.920

23.37

84.6

41.1

2X2

0.063

1.60

0.437

11.10

76.4

51.2

3X3

0.054

1.37

0.279

7.09

70.1

56.7

4X4

0.063

1.60

0.187

4.75

56.0

104.8

4X4

0.047

1.19

0.203

5.16

65.9

57.6

5X5

0.041

1.04

0.159

4.04

63.2

54.9

6X6

0.035

0.89

0.132

3.35

62.7

48.1

8X8

0.028

0.71

0.097

2.46

60.2

41.1

10X10

0.025

0.64

0.075

1.91

56.3

41.2

10X10

0.020

0.51

0.080

2.03

64.0

26.1

12X12

0.023

0.584

0.060

1.52

51.8

42.2

12X12

0.020

0.508

0.063

1.60

57.2

31.6

14X14

0.023

0.584

0.048

1.22

45.2

49.8

14X14

0.020

0.508

0.051

1.30

51.0

37.2

16X16

0.018

0.457

0.0445

1.13

50.7

34.5

18X18

0.017

0.432

0.0386

0.98

48.3

34.8

20X20

0.020

0.508

0.0300

0.76

36.0

55.2

20X20

0.016

0.406

0.0340

0.86

46.2

34.4

24X24

0.014

0.356

0.0277

0.70

44.2

31.8

30X30

0.013

0.330

0.0203

0.52

37.1

34.8

30X30

0.012

0.305

0.0213

0.54

40.8

29.4

30X30

0.009

0.229

0.0243

0.62

53.1

16.1

35X35

0.011

0.279

0.0176

0.45

37.9

29.0

40X40

0.010

0.254

0.0150

0.38

36.0

27.6

50X50

0.009

0.229

0.0110

0.28

30.3

28.4

50X50

0.008

0.203

0.0120

0.31

36.0

22.1

60X60

0.0075

0.191

0.0092

0.23

30.5

23.7

60X60

0.007

0.178

0.0097

0.25

33.9

20.4

70X70

0.0065

0.165

0.0078

0.20

29.8

20.8

80X80

0.0065

0.165

0.0060

0.15

23.0

23.2

80X80

0.0055

0.140

0.0070

0.18

31.4

16.9

90X90

0.005

0.127

0.0061

0.16

30.1

15.8

100X100

0.0045

0.114

0.0055

0.14

30.3

14.2

100X100

0.004

0.102

0.0060

0.15

36.0

11.0

100X100

0.0035

0.089

0.0065

0.17

42.3

8.3

110X110

0.0040

0.1016

0.0051

0.1295

30.7

12.4

120X120

0.0037

0.0940

0.0064

0.1168

30.7

11.6

150X150

0.0026

0.0660

0.0041

0.1041

37.4

7.1

160X160

0.0025

0.0635

0.0038

0.0965

36.4

5.94

180X180

0.0023

0.0584

0.0033

0.0838

34.7

6.7

200X200

0.0021

0.0533

0.0029

0.0737

33.6

6.2

250X250

0.0016

0.0406

0.0024

0.0610

36.0

4.4

270X270

0.0016

0.0406

0.0021

0.0533

32.2

4.7

300X300

0.0051

0.0381

0.0018

0.0457

29.7

3.04

325X325

0.0014

0.0356

0.0017

0.0432

30.0

4.40

400X400

0.0010

0.0254

0.0015

0.370

36.0

3.3

500X500

0.0010

0.0254

0.0010

0.0254

25.0

3.8

635X635

0.0008

0.0203

0.0008

0.0203

25.0

2.63
